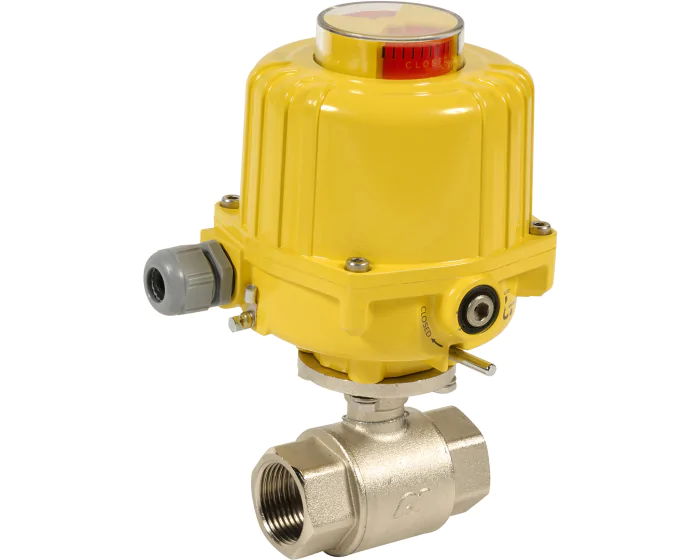

The 502 ball valve has a CW 617 N brass body and ball, PTFE seats. Actuation with electric actuator SA03. ACS approval from 1/2'' to 4''. PS: 16 bar, TS: 100°C. Threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Brass 614N |
| Manual override | By key |
| Declutchable | Yes |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 63.5 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Power (W) | 18 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 12 |
| Voltage | 230 V AC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 230 V AC | 270002023000 | S1004261 |
€299.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' 24 V AC/DC | 270002023001 | S1004262 |
€299.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 230 V AC | 270003023000 | S1004263 |
€302.33
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' 24 V AC/DC | 270003023001 | S1004264 |
€302.33
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 230 V AC | 270004023000 | S1004265 |
€312.94
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' 24 V AC/DC | 270004023001 | S1004266 |
€312.94
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body 230 V AC DN8 - 1/4'' | 270090023000 | S1004267 |
€323.54
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN8 - 1/4'' 24 V AC/DC | 270090023001 | S1004268 |
€323.54
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body 230 V AC DN10 - 3/8'' | 270091023000 | S1004269 |
€323.97
(excl. btw)
|
add to cart |
